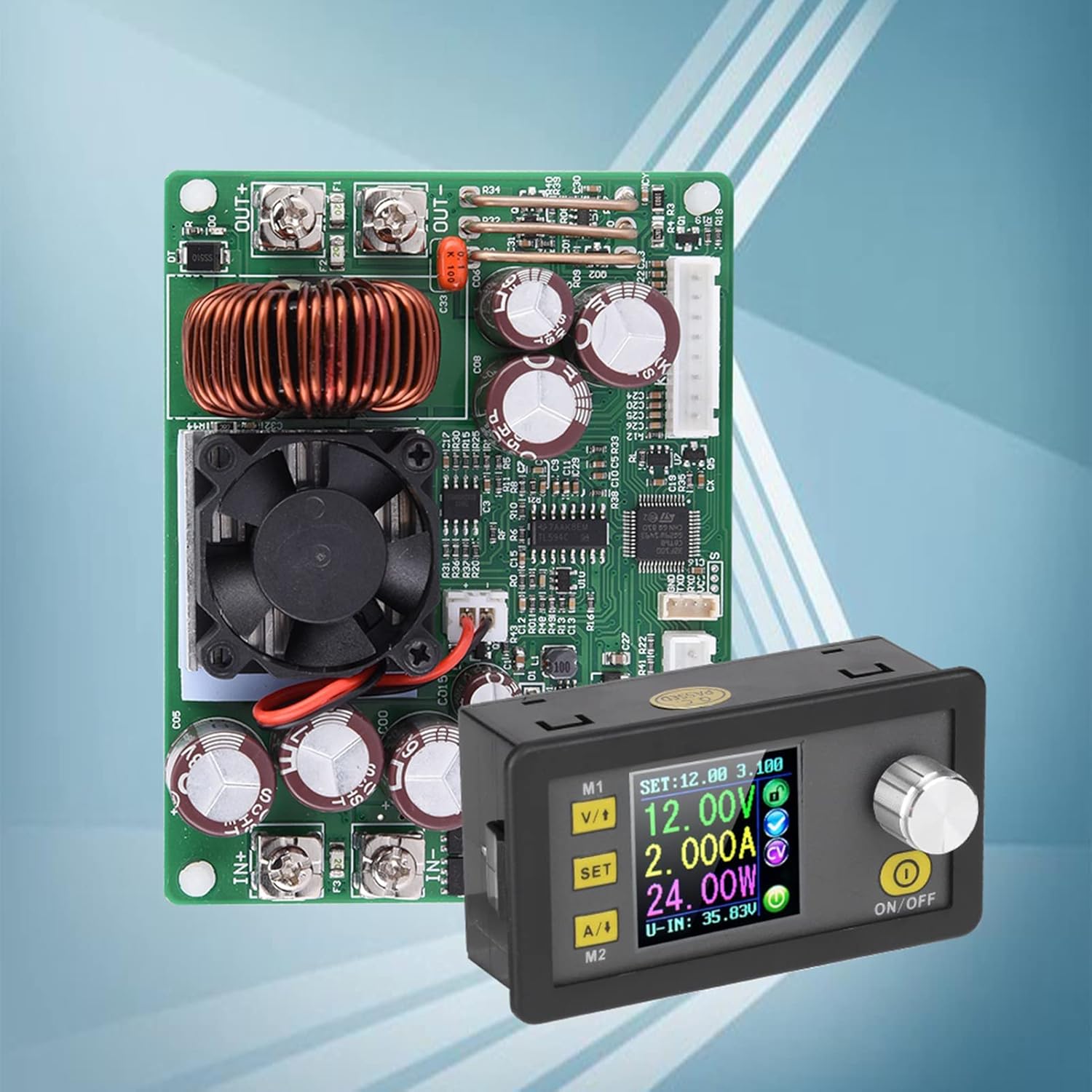

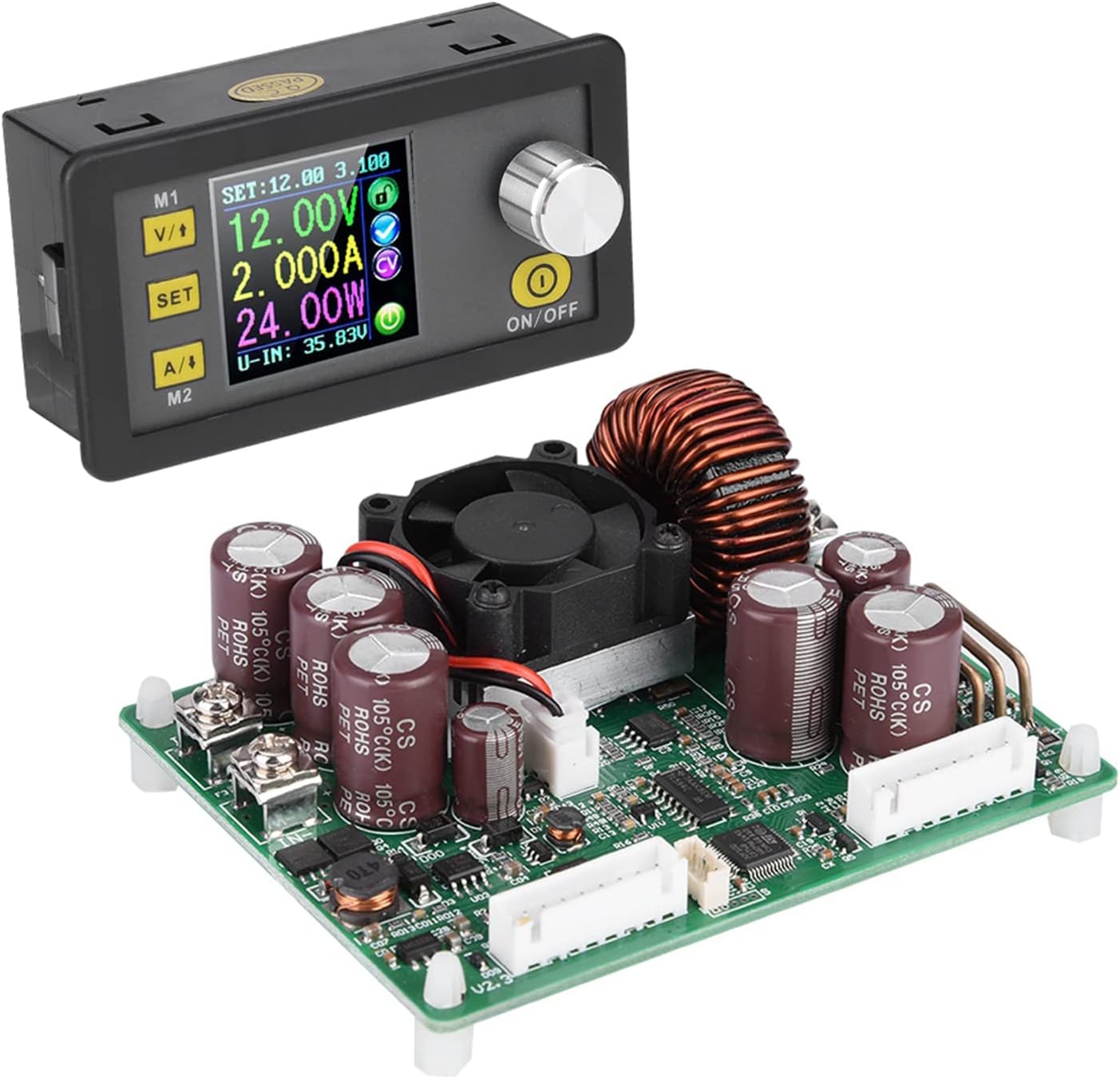

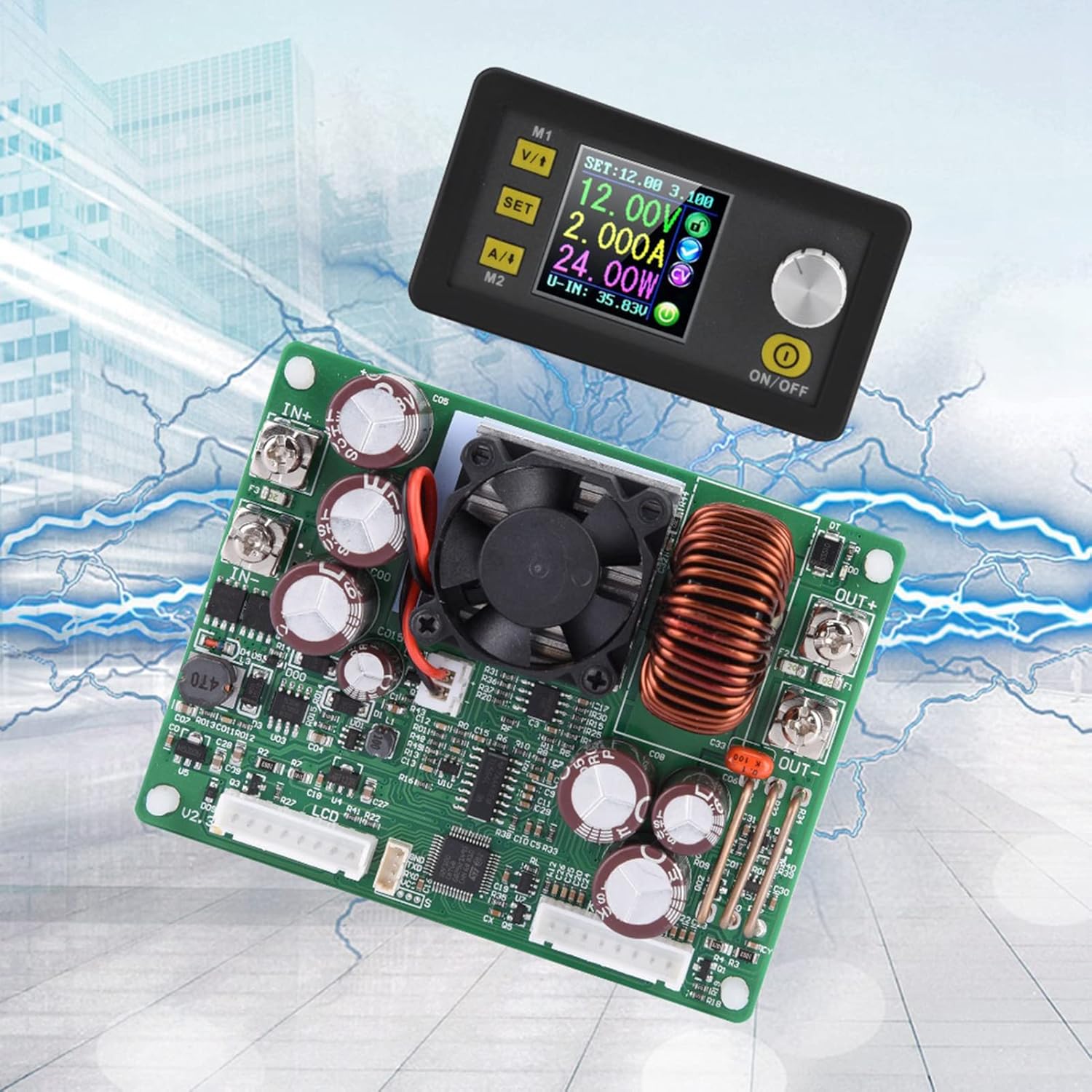

Hilitand DPS5020 Constant Voltage Converter Power Supply Module, Programmable Step Down Module with Color LCD for and Operability (DPS5020-USB-BT)

Specification: Model (Optional) DPS5015DPS5020 Input Voltage DC 6-60V Output Voltage 0-50.00V Output Current 0-15.00A 0-20.00A Output Power 0-750W 0-1000W Output Voltage Resolution 0.01V Output Current Resolution 0.01A Display 1.44in colorful LCD Wiring Length 200mm/7.9in Display Module Size 80*42*45mm/ 3.1*1.6*1.8in 79*43*41mm/ 3.1*1.7*1.6in Power Module Size 93*71*41mm / 3.7*2.8*1.6in Package Weight (Approx.) 237g/8.3oz 269g/9.5oz Package List: 1 *Display Module 1 *Power Module 1 * USBBoard 1 * Board 1 * Set of Accessories Note: 1. You must make sure that the input voltageis 1.1 times higher than output voltage. 2. Under large current circumstances, payattention to enhancing heat dissipation. 3. Please properly connect the display module and the power module. 4.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

• [Key Lock Feature] Keep buttons from accidental presses by locking them with a simple two-second hold of the coding potentiometer.
• [High ] from the module's top-notch accuracy for precise voltage and current control in various applications.
• [Easy to Control] Press the on/off button to effortlessly open or close the output on any interface.
• [Small in Volume] The power supply module is compact yet powerful, providing advanced functions, effective performance, and precise operation.
• [Preset Data Groups] Easily store and extract up to ten preset data groups for quick and convenient access.
